Model |

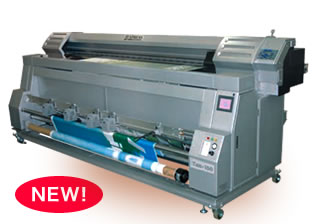

Tex-100 |
Power Resource |
200V Triple Phase/60A |
Printing Speed |
360x720dpi 4Pass bidirectional 16m2/h (CMYKMC mode)
720x720dpi 8Pass bidirectional 8m2/h (CMYKMC mode) |
Maximum Media Width |
2600mm |
Overall Size |
W:3894 x D:1600 x H:1560 |
Attachment |
4 heat cutters, RIP |
PC |
CPU:from Pentium4 2.8GHz
Memory: from 1GB
HDD:80GB OS:WindowsXP Professional |
|
| *Please prepare the air compressor (comparable to 1hp / 0.4Kw) |
Model |

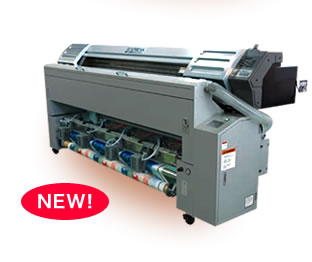

DSS-1800II |
Power Resource |
200V Triple Phase/40A or 200V Single Phase/50A |
Printing Speed |
360x720dpi 4Pass bidirectional 16m2/h (CMYKMC mode)
720x720dpi 8Pass bidirectional 8m2/h (CMYKMC mode) |
Maximum Media Width |
1800mm |
Overall Size |
W:3520 x D:1390 x H:1330 |
Weight |
850Kg |
Attachment |
4 heat cutters, RIP |
PC |
CPU: from Pentium4 2.8GHz
Memory: from 1GB
HDD:80GB OS:WindowsXP Professional |
|
| *Please prepare the air compressor (comparable to 1hp / 0.4Kw) and blower (comparable to 0.4Kw / 13m2/min.) separately. |
Model |

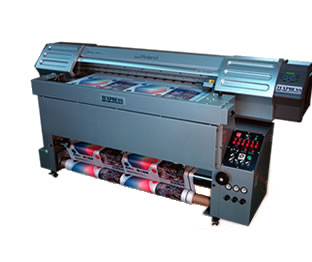

DSS-1300 |
Power Resource |
200V Single Phase/ 42A |
Printing Speed |
360x720dpi 4Pass bidirectional 16m2/h (CMYKMC mode)
720x720dpi 8Pass bidirectional 8m2/h (CMYKMC mode) |
Maximum Media Width |
1300mm |
Overall Size |
W:2700 x D:1260 x H:1300 |
Weight |
315Kg |
Attachment |
3 heat cutters, RIP |
PC |
CPU: from Pentium4 2.8GHz
Memory: from 1GB
HDD:80GB OS:WindowsXP Professional |
|
| *Please prepare the air compressor (comparable to 1hp / 0.4Kw) and blower (comparable to 0.4Kw / 13m2/min.) separately. |
|
 |
|
|
